Power quality

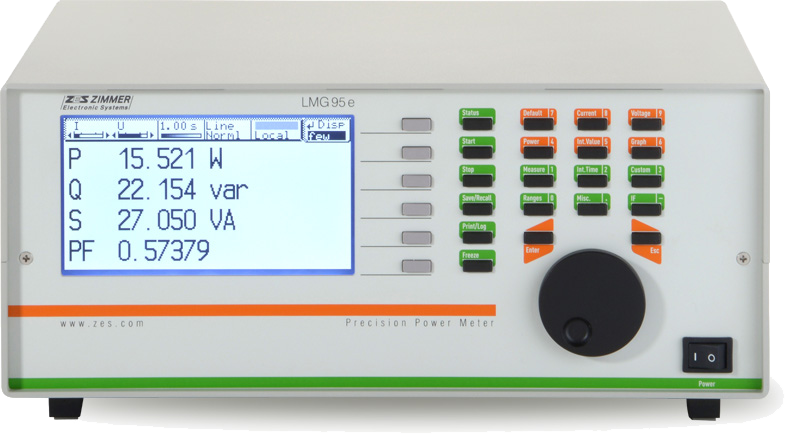

LMG95e

1 Phase Power Analyzer

The precision power meter LMG95e is the economic version of the proven LMG95. Available in a fixed configuration, it is the entry-level model of the LMG product family and balances price, accuracy and features.

  • DC-50kHz

  • 0.11%

  • 6-600V

  • 150mA-20A

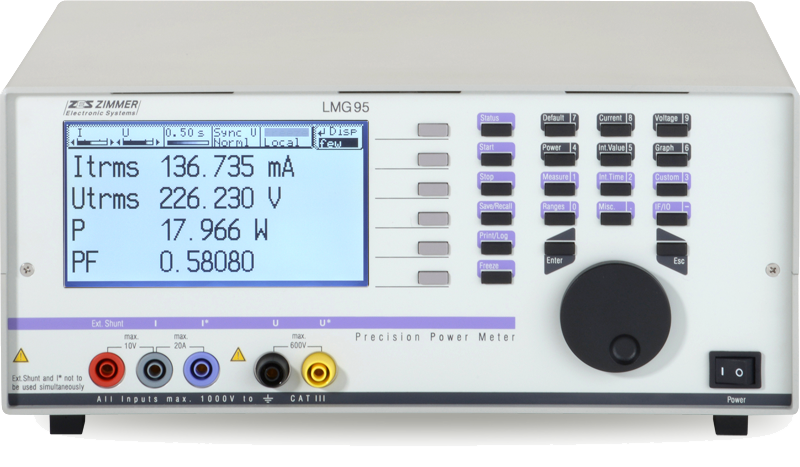

LMG95

1 Phase Power Analyzer DC-50kHz

The LMG95 single-phase precision power meter is an outstanding product in the proven LMG series of ZES ZIMMER precision power measuring devices. Highly accurate continuously gapless signal measurement and processing, ergonomic operation and presentation of the results, interfaces with high data rates for efficient system applications – these are the performance features which distinguish the LMG95.

  • DC-50kHz

  • 0.03%

  • 6-600V

  • 150mA-20A

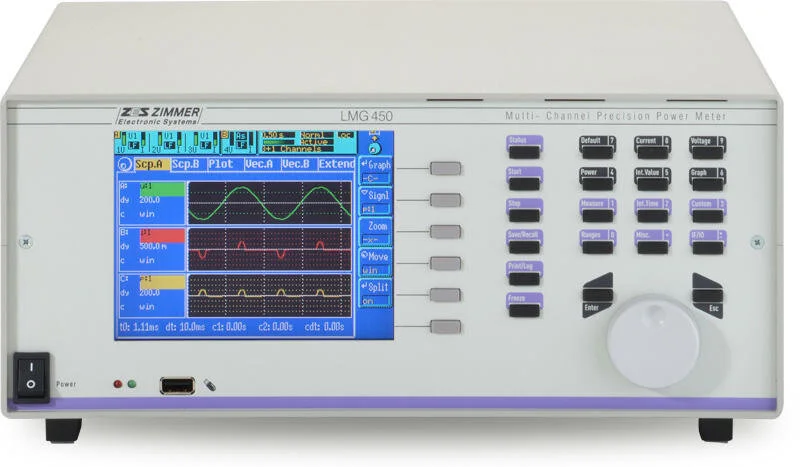

LMG450

4 Channel Power Analyzer

The four-channel LMG450 power meter is another advanced product from ZES ZIMMER LMG series of precision power meters, tried and tested and with great acceptance in the market. It is designed as a universal meter for the entire field of power electronics and network analysis. It can be used in practically all power electronics applications, in development and test systems, in quality assurance and maintenance. It is fully frequency inverter compatible. Of course, it can also be used for measurements in motors, transformers, conventional and switched power supply units. It is also suitable for mains analysis measurements.

  • DC-20kHz

  • 0.10%

  • 6-600V

  • 600mA-16A

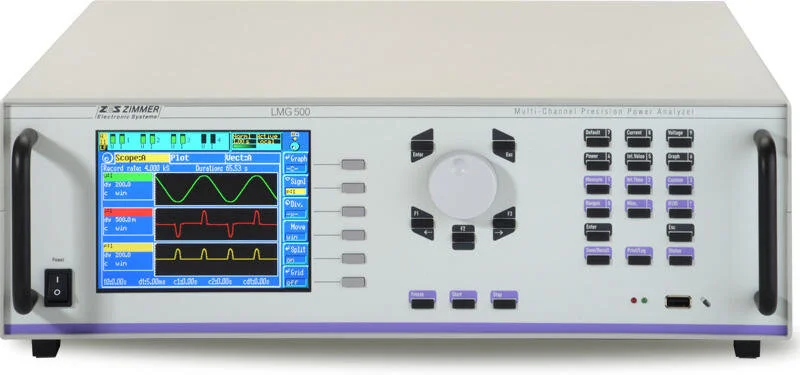

LMG500

1 to 8 Channel Power Analyzer

The LMG500 is best-in-class for measurements at:

  • Devices, e.g. E-machines, frequency inverters, transformers

  • Installations and parts of those power grids and consumers to determine interactions

  • Components, e.g. ferrite cores, semiconductors, capacitors

Another application field are CE compliance tests on devices, analyzing the feedback of harmonics and flicker (load variations) and standby power consumption.

The most important features of the LMG500 are:

  • Wide dynamic measuring range from 3 V to 1000 V / 3200 Vpeak, 20 mA to 32 A / 120 Apeak in direct measurement only by a single pair of sockets for each voltage and current input.

  • Modular with 1 to 8 power measuring channels

  • Measuring accuracy at 45 to 65 Hz 0.015 % of reading plus 0.01 % of range

  • 3 MSample/s per channel, absolutely gapless sampling with the evaluation of all sampling values

  • Capturing transients and fast signal changes by event triggering in parallel to the ongoing measurement

  • Group delay between voltage and current measuring input <3 ns as standard to ascertain very precise measurements at low cosj and/or high frequencies

  • Harmonics and inter-harmonics up to 50 kHz internally, and up to 1 MHz with an external PC

  • Flicker, interactions between network and load

  • Ergonomic user interface for easy, intuitive use of the power analyzer

  • Real-time evaluation of the measurements in numeric tables and diagrams

  • Data communication interfaces with high transfer rates (RS232, USB, IEEE488.2, Ethernet)

Specifications

  • DC-10MHz

  • 0.03%

  • 3-1000V

  • 20mA-32A

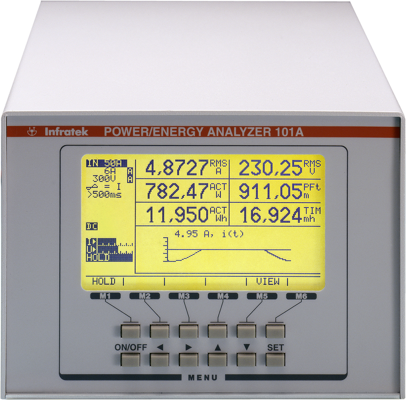

101A

Economical solution for many measurement applications

The 101A is suitable for measurements on electronically switched loads. Because of its DC coupling capability correct rms- and power values result at all times. Take the case of line voltage multiplied by half wave rectified current. AC-coupling yields wrong rms current and power, DC-coupling yields correct values.

The 101A is simple to use. In the side menu you select current- and voltage ranges (automatic or manual), synchronization, measurement time, special function “Peak-Hold”, and display modes L1, L2, L3, SUM, and ALL (3-phase display).

In the display number fields you can place any measured quantity from the measurement function selection table including harmonics of current and voltage. In the graphics field waveforms and bar graphs of current and voltage can be displayed.

A load connection box is available which connects your single- or three phase load to the Power Analyzer and to the wall power outlet.

Optional RS-232 interface with Windows Operating Software and battery back up for 6 hours autonomous operation is available. It prevents data loss, such as energy data, during power failure.

Specifications

  • Accuracy grades 0.15%

  • Number phases 1 & 3

  • Current input 50A

  • Current range 600mA-60A

  • Voltage range 30V-1000V

  • Frequency 2Hz-50kHz

  • Harmonic measurement 1 - 20

  • Energy measurement YES

  • Mechanical measurement NO

  • Dynamic torque measurement NO

  • Data logging NO

  • Measurement functions 1

  • RS-232 Optional

  • IEEE-488 NO

  • USB NO

  • Ethernet NO

  • Printer output NO

  • Analog in/out NO

  • LC-Display EL backlight

  • PC software Optional

  • LABView driver NO

  • Spez. versions NO



PC10

Turns your computer into a power analyzer

The new PC10 Spectral Power Converter measures, computes and transmits all your important power variables to your computer. The software lets you select the quantities you want to display on the monitor. The settings, such as auto or manual ranging, are easily changed and measurements are stored at a mouse click.

The Spectral Power converter is available in single or three phase versions and combines an ammeter, voltmeter, wattmeter, and a spectum analyzer in a single light weight package.

Specifications

  • Accuracy grades 0.1%; 0.05%

  • Number phases 1 & 3

  • Current input 1A; 5A; 30A; Shunt

  • Current range 1.5mA - 100A

  • Voltage range 0.3V - 1000V

  • Frequency 0.1Hz - 1MHz

  • Harmonic measurement 1 - 99

  • Energy measurement YES

  • Mechanical measurement NO

  • Dynamic torque measurement NO

  • Data logging NO

  • Measurement functions 1

  • RS-232 Included

  • IEEE-488 Optional

  • USB NO

  • Ethernet NO

  • Printer output Optional

  • Analog in/out Optional

  • LC-Display PC monitor used

  • PC software Included

  • LABView driver NO

  • Spez. versions NO

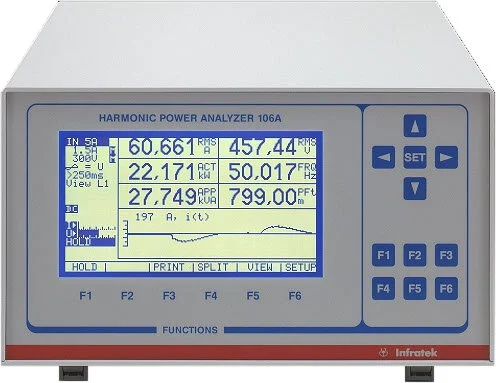

106A

Low cost, high performance

The Infratek 106A high performance Power Analyzers are available as single and three phase instruments. The 106A is designed to cope with the extreme signals generated on frequency inverter drivers and other electronically generated signals. You don’t have to worry about the signal waveforms. The analyzers will always provide precise and reliable measurements.

The large and very bright monitor lets you read the display values from a distance of up to 4m.

Specifications

  • Accuracy grades 0.1%; 0.05%

  • Number phases 1 & 3

  • Current input 1A; 5A; 30A; Shunt

  • Current range 1.5mA - 100A

  • Voltage range 0.3V - 1000V

  • Frequency 0.1Hz - 1MHz

  • Harmonic measurement 1 - 99

  • Energy measurement YES

  • Mechanical measurement NO

  • Dynamic torque measurement NO

  • Data logging NO

  • Measurement functions 1

  • RS-232 Optional

  • IEEE-488 Optional

  • USB Optional

  • Ethernet Optional

  • Printer output Optional

  • Analog in/out Optional

  • LC-Display FL backlight

  • PC software Optional

  • LABView driver Optional

  • Spez. versions NO

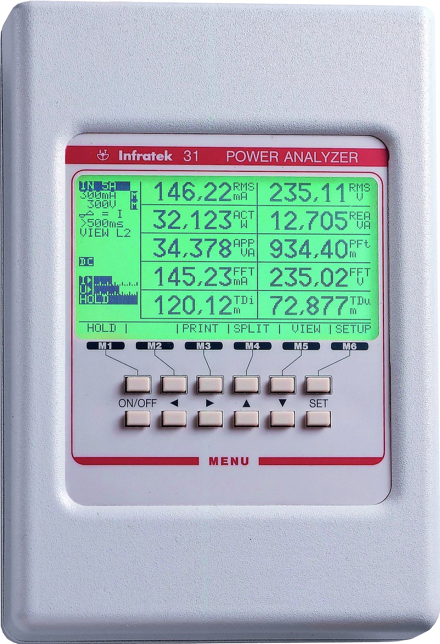

Model 31

Low cost, easy to operate

The Infratek Model 31 hand-held Power Analyzers are sophisticated measuring instruments, single and three phase, designed for laboratory and field use. Unlike other instruments in this price range the Model 31 Power Analyzers are suitable for measurements on frequency inverter drives, light ballasts, and other electrically controlled loads. The wide frequency range, the high common mode rejection and the fact that you can measure currents of up to 50A directly without having to use clamps guarantees excellent accuracy for all types of measurements.

Specifications

  • Accuracy grades 0.2%

  • Number phases 1 & 3

  • Current input 3A; 50A; Shunt

  • Current range 100mA - 100A

  • Voltage range 1V - 1000V

  • Frequency 2Hz - 100kHz

  • Harmonic measurement 1 - 63

  • Energy measurement YES

  • Mechanical measurement NO

  • Dynamic torque measurement NO

  • Data logging YES

  • Measurement functions 2 Standard, Logging

  • RS-232 Included

  • IEEE-488 NO

  • USB NO

  • Ethernet NO

  • Printer output NO

  • Analog in/out NO

  • LC-Display EL backlight

  • PC software Optional

  • LABView driver NO

  • Spez. versions NO

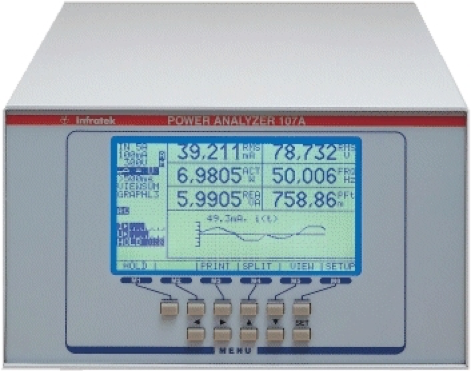

107A

HIGH PERFORMANCE EASY TO USE

The MODEL 107A HIGH SPEED POWER ANALYZER is a very advanced measurement tool designed to offer the scientist, engineer, or technician more electrical and mechanical signal information than is normally found in one single instrument.

The Infratek Model 107A Power Analyzers are multipurpose instruments designed for laboratory and field use, for production testing and quality control. High accuracy, wide frequency range, and high common mode rejection are prerequisites for precision measurements on inverters, light ballasts, and ultrasonic transducers. The 107A measurement capabilities and simplicity of use are unmatched.
Six menu soft keys M1 through M6 and five cursor soft keys control the instrument. The operating procedure, to configure the display and the interface, to store instrument settings, to set the scaling factors, to select the operating mode, to select the input, the ranges, and many more features is self explanatory. You can save your personal instrument settings and have the unit start-up with your personal configuration at power-on.Efficient data processing permits simultaneous measurements on all three phases of a three phase system and yields comprehensive signal information including rms and power values, harmonics, phase angles, and where applicable mechanical power output, torque, efficiency, and slip.A programmable data logging function permits to transfer of up to 500 rms and power values per second to a personal computer. Using the Infratek operating software plots of power versus time or speed, or current versus time or frequency are easily generated. The 107A Power Analyzers determines electrical motor torque applied to its load. No torque transducers are needed. Induction motors and dc motors require a speed transducer, synchronous motors do not. A special operating mode for dynamic torque measurement in the air gap of a generator or motor provides plots of torque versus speed, frequency, or time and helps to detect undesirable peaks.

Main Features

  • DC-300 kHz, 100 mA-50A, 1 V-1000 V

  • Suitable for frequency inverter drivers

  • Line-to-line voltage, torque, slip, efficiency

  • Harmonics 1-63, IEC1000-3-2

  • High speed data logging for dynamic processes

  • High speed dynamic torque measurement

  • Advanced operating software under Windows

  • Accuracy grades 0.05, 0.1, 0.3 % (low cost)

  • Determines torque without using transducers

Display

  • User display configuration and start-up

  • Displays phase- and sum values, 3 phase values

  • Numeric fields combined with graphics

Processing Power

  • Acquires all data in 3 phase system simultaneously

  • Measures and computes 1000 values on-line

  • High speed data transfer to personal computer

Interface - Input/Output

  • RS-232

  • Ten high speed analog inputs/frequency

  • Ten analog outputs

  • Operating software under Windows 95 to XP

Specifications

  • Accuracy grades 0.3%; 0.1%

  • Number phases 1 & 3

  • Current input 3A; 50A; Shunt

  • Current range 100mA - 100A

  • Voltage range 1V - 1000V

  • Frequency 2Hz - 100kHz

  • Harmonic measurement 1 - 63

  • Energy measurement YES

  • Mechanical measurement YES

  • Dynamic torque measurement YES

  • Data logging YES

  • Measurement functions 2 Standard, Logging

  • RS-232 Included

  • IEEE-488 NO

  • USB Optional

  • Ethernet NO

  • Printer output NO

  • Analog in/out Optional

  • LC-Display FL backlight

  • PC software Optional

  • LABView driver Optional

  • Spez. versions Motor/Trafo Version

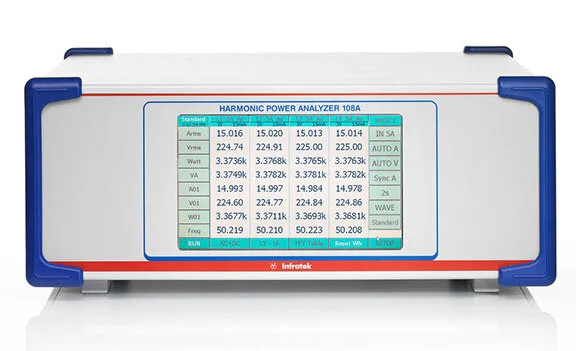

108A

PERFORMANCE, SIMPLE TO USE

The Infratek 108A High Precision Power Analyzer is available in 1-, 2-, 3-, 4-, 5-, or 6- phase versions. All voltage inputs 0.3V up to 1500Vpeak and all current inputs (1.5mA up to 1A; 15mA up to 5A; 1A up to 40A; and shunt inputs 60mV up to 6V are potential free and exhibit low noise, high common mode suppression, excellent DC-stability, Wide frequency range (DC-2MHz) and very low self-heating on current inputs.

There is no need to fiddle with dc-compensation, or changing current plug-ins. All is built into the input sections of the Power Analyzer, ready for measurements. It is simple to use, your intuition will guide you to operate the Power Analyzer touch screen correctly. Almost all setting changes are accomplished with two touches on the display screen or two clicks with the wireless mouse.

Four Different measurement functions enhance capabilities

Standard Measurement Mode

In the Standard Measure Mode 280 quantities per phase are measured without gap and are continuously updated. Values can be displayed on four display pages, can be saved in internal memory, or can be transferred via Interface to a computer. The display shows voltage, current, and power wave forms. Harmonics and bar graphs can be viewed on 5 pages. Two electric motors can be tested simultaneously. External Speed and torque inputs are optionally available. Transformer values are implemented too

Logging Measurement Mode

This measure mode is suitable for very fast measurements or for long time averaging of data. It is possible obtaining 6 datasets of a 6-phase instrument within 20ms or 6 datasets per 10 minutes.
From every phase you obtain 8 values: frequency, rms current, rms voltage, power, power factor, apparent power, energy Wh, and apparent energy VAh

Transient Measurement Mode

You can catch current-, voltage-, and power wave forms in a start-up on transient mode up to 6 phases simultaneously or you can view all the wave forms at a critical operating point.
Sections of the wave forms can be expanded by simply touching one of the 4 “Zoom Sectors”

Power-Speed Measurement Mode

This measure mode analyzes the performance of devices such as electric cars. In 20ms intervals the following data are stored in internal memory: rms current, rms voltage, power, apparent power, energy, apparent energy, and rpm of a shaft.
At end of measurement, (maximum 11 seconds) data versus time
are displayed, can be expanded to view details, or can be stored

Features

  • Available as 1-, 2-, 3-, 4-, 5-, 6-phase instrument

  • precision available: 0.02% + 0.02% range

  • 18 bit resolution. High accuracy at 10% full scale

  • Wide angle, touch-screen TFT display (800 x 480 pixels)

  • Simple to operate, most settings in 2 steps (2 touches)

  • Standard-, logging-, Transient-, Power-Speed measure functions

  • Very fast data transfer; up to 3400 values per second

  • High DC precision for solar applications

  • 4 current inputs: 1mA – 1A, 15mA – 5A, 1A – 50A, Shunt

  • Voltages Ranges: 0.3V to 1000V

  • Interfaces: Ethernet, RS-232 / USB, IEEE-488, Process

  • Interface commands for fast data transmission

  • Operating software under Windows

  • Reasonably priced by virtue of smart design

  • Simple servicing, modular concept, pre-calibrated inputs

  • Optional high precision, broadband, current sensors

  • Optional 30A coaxial shunt (current viewing resistors)

  • 1Gbyte Memory for storing measurement data

  • 6 analog inputs and 2 frequency inputs, 12analog outputs

Specifications

  • Accuracy grades 0.02% + 0.02%

  • Number phases 1, 2, 3, 4, 5, 6

  • Current input 1.5A; 7A; 40A; Shunt

  • Current range 1mA - 100A

  • Voltage range 0.3V - 1000V

  • Frequency 0.1Hz - 2MHz

  • Harmonic measurement 1 - 88

  • Energy measurement Wh, VAh, Varh, Ah

  • Mechanical measurement YES

  • Dynamic torque measurement YES, Speed/20ms

  • Data logging YES

  • Measurement functions 4 Standard, Logging, Transient, Power-Speed

  • RS-232 Optional

  • IEEE-488 Optional

  • USB Optional

  • Ethernet Optional

  • Printer output USB Optional

  • Analog in/out 2 Frequency, 6 in, 12 out

  • LC-Display TFT, Touch Screen

  • PC software Optional

  • LABView driver Optional

  • Spez. versions Motor/Trafo Version included
